Background
Listed for sale by Centerfire Systems in their inventory of 7/20/1995 from INTRAC, and again in their 96-01 catalog.
Note: all marking that appear white have been given contrast for the photographs using white chalk.
Barrel Group
| Barrel |
|
Inland Mfg. Div. General Motors 9-44 |
| Gas Piston |
|
W.I. (Inland) |
| Front Sight |
type 1 |
N |
| Barrel Band |
type II |
swivel unmarked, KI on band (Inland) |
| Barrel Skirt |
|
short |
| Slide |
type IV |
PI (Packard Mfg. Co. of Indianapolis for Inland) |
| Slide Stop |
type I |
|
P proofmark on top of barrel.
Last 4 digits of receiver serial number on slide arm. INTRAC import mark on bottom of barrel behind front sight.
Stock Group
| Stock |
type III |
IO (Overton for Inland) |
| Handguard |
type II |
Q-RMC (Rock-Ola for Quality Hardware) |
| Buttplate |
|
square pattern |
Handguard and slingwell of stock do not have last 4 digits of receiver serial number. Right side of stock has ordnance crossed
cannons. Centerfire Systems catalog 7/20/1995 lists the stock as a highwood HI (Inland), 96-01 as a "J stock". It would
appear the highwood stock the carbine returned from Austria with was swapped out for the "J stock" while the carbine was
still for sale at Centerfire Systems.
Receiver Group
| Receiver |
type II |
Inland Div. |
| Rear Sight |
type 3 |
I.R. Co. 7160060 (International Register Company & part #) |
| Operating Spring Tunnel Housing |
integral |
|
| Recoil Plate |
type II |
D.I. (Dayton Mold Co. for Inland) |
The original Bavaria agency marking was ground off and covered with a black paint like substance. The Bavaria Rural Police
marking was stamped a letter at a time into top of receiver to left of bolt, over the previously removed marking. Who
removed the agency markings were private gun brokers who owned the carbines after they were used by Germany. This carbine was
sold to Austria and Austria did not alter any prior German markings, or a lack thereof. This carbine was likely restamped
by a gun broker prior to its sale to Austria.
Bolt Group
| Bolt |
type II |
A.I. left lug (Inland) |
| Ejector |
type I |
|
| Extractor |
type III |
WI (Inland) |
| Extractor Plunger |
type II |
|
| Firing Pin |
type I |
NI (National Cash Register Co. of Dayton, OH for Inland) |
Last four digits of receiver serial number electropenciled into the top of the bolt.
Trigger Group
| Trigger Housing |
type II |
N (National Postal Meter) |
| Trigger |
type II |
.U. (Underwood) |
| Sear |
type II |
RI (Reece Button Hole Machine Co. of Boston for Inland) |
| Hammer |
type III |
LT-Q (Ludlow Typograph Co. of Chicago for Quality Hardware) |
| Hammer Spring |
type II |
|
| Trigger Housing Pin |
type II |
|
| Safety |
type 4 |
J.A.O. (J.A. Otterbein) |
| Magazine Catch |
type IV-A |
HI (H&R Machine Co. for Inland) |

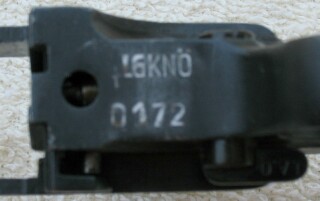

Bottom of trigger housing has markings LGKNÖ with the inventory number 0172. Rear of trigger housing on T are last
four digits of the receiver serial number.
Additional Information
The barrel, receiver, barrel band, front sight have been treated with hot black oxide.
Information and photographs courtesy of Morris Tuck
