U.S. M1 Carbine
Winchester
Serial Number: 1,202,xxx
Bavaria Forestry Police
&
LandesGendarmerieKommando NiederÖsterreich (LGKNÖ)
|
|
Background
|
|
Barrel Group
| Barrel | unknown | |
| Front Sight | type | modified |
| Barrel Band | type 1 | |
| Barrel Skirt | ||
| Slide | Type 3 | W (Winchester) |
No close up picture of the barrel and it's components could be obtained. Last 4 digits of receiver serial number on slide arm.
|
|
Stock Group
| Stock | type 2 | PU (Underwood) |
| Handguard | type 2 | Q-RMC(Quality Hardware) |
| Buttplate | unknown |
Handguard and slingwell of stock have last 4 digits of receiver serial number.
|
|
Receiver Group
| Receiver | type 2 | Winchester |
| Rear Sight | type 3 | |
| Operating Spring Tunnel Housing | ||
| Recoil Plate | type |
Bavaria Forestry Police
|
|
Bolt Group
| Bolt | type 1 | |
| Ejector | ||
| Extractor | ||
| Extractor Plunger | ||
| Firing Pin |
Last four digits of receiver serial number electropenciled into the top of the bolt.
|
|
Trigger Group

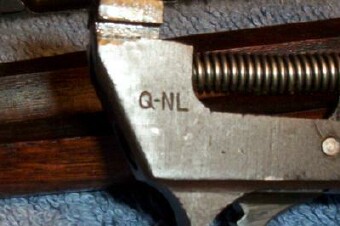

| Trigger Housing | type 2 | Q-NL (Quality Hardware) |
| Trigger | ||
| Sear | type | |
| Hammer | type | |
| Trigger Spring | type | |
| Trigger Housing Pin | Type | |
| Safety | type 4 | |
| Magazine Catch | type 3 | underlined M |
 |
 |

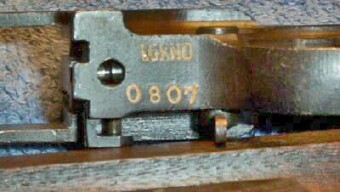

Bottom of trigger housing has markings LGKNÖ with the inventory number 0807. Rear of trigger housing on T are last four digits of the receiver serial number.
|
|
Additional Information
No further details.
|
|
