Barrel Group

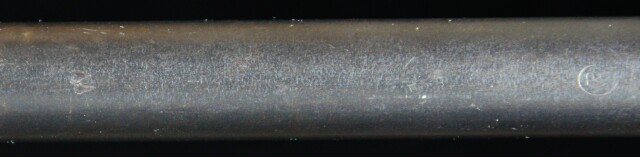

| Barrel |
type I |
W (Winchester) undated |
| Front Sight |
type I |
N (Niedner Rifle Corp. of Dowagiac, MI for various primary contractors) |

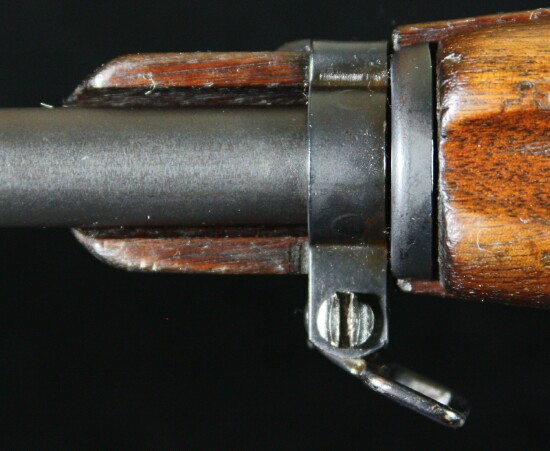

| Barrel Band/Swivel |
type IA |
unmarked |
| Slide |
type III |
W (Winchester) |

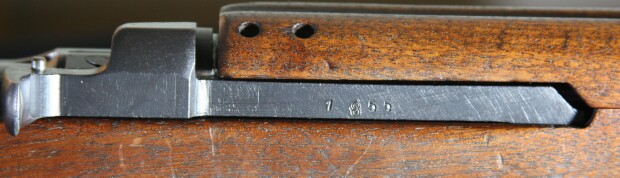

Last four digits of receiver serial number on slide arm.
Stock Group
| Stock |
type II |

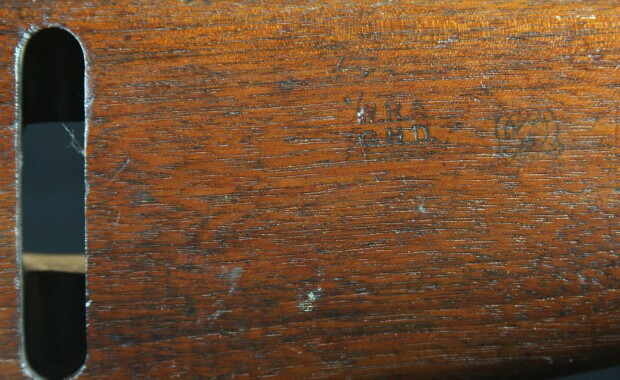

Winchester Ordnance inspector marks on right side of stock |
| Handguard |
type III |
W (Winchester) |
| Buttplate |
|
Underwood |

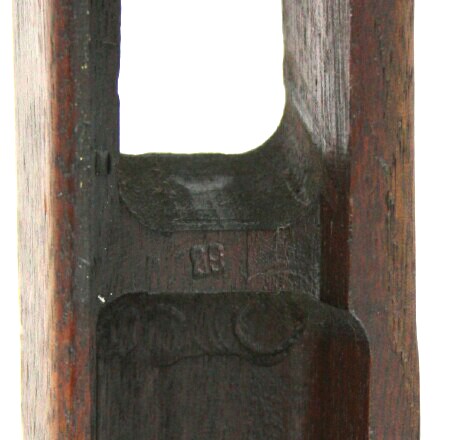

Last four digits of receiver serial number in slingwell, not present on handguard.
Receiver Group

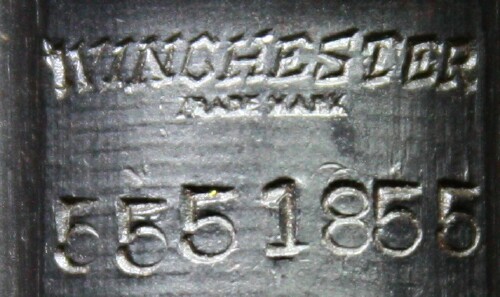

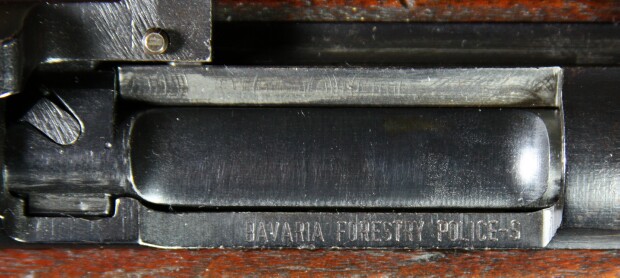

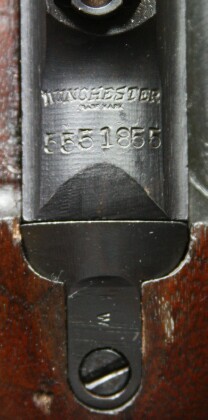

| Receiver |
type IB |
Winchester |

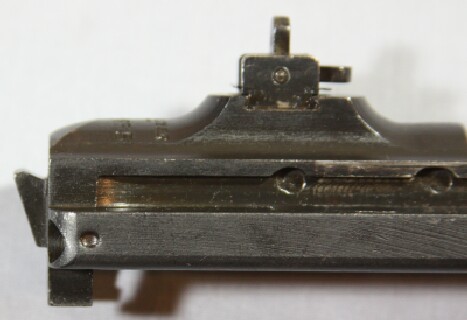

| Rear Sight |
type I |
S on left side, no other markings |
| Operating Spring Tunnel Housing |
integral |
|
| Recoil Plate |
type III |
W (Winchester) |

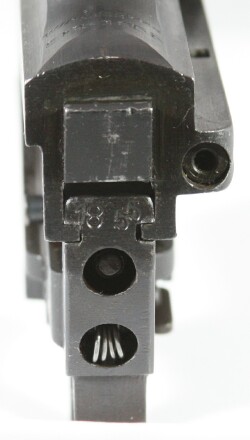

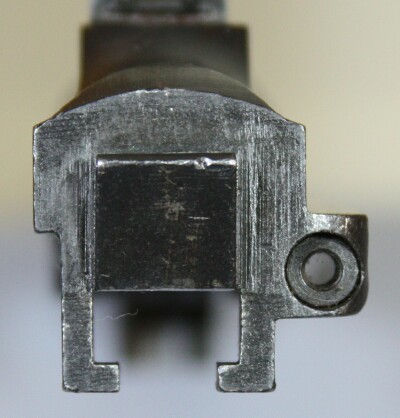

Deep hole for the operating spring was originally drilled very close to side and bottom of receiver. Hole is drilled all the way out the back of the receiver.
Part of a spring tube has been inset into the rear of the hole and staked in place.
This was a U.S. Ordnance approved repair for salvaging receivers.
Bolt Group
| Bolt |
flat |
W (Winchester) |
| Ejector |
type II |
|
| Extractor |
type II |
U (Underwood) |
| Extractor Plunger |
type II |
|
| Firing Pin |
type III |
N-N (Nolan Machinery Company of Rome, NY for National Postal Meter) |
Trigger Group

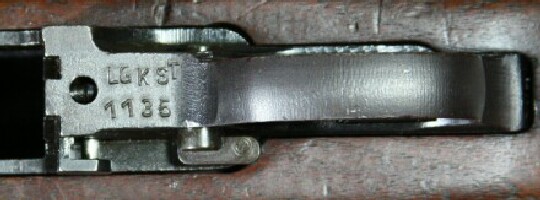

| Trigger Housing |
type III |
W (Winchester) |
| Trigger |
|
W (Winchester) |
| Sear |
type I |
W (Winchester) |
| Hammer |
type III |
W on left side, S on right side (Winchester) |
| Trigger Housing Pin |
type II |
|
| Safety |
type IV rotary |
S encircled |

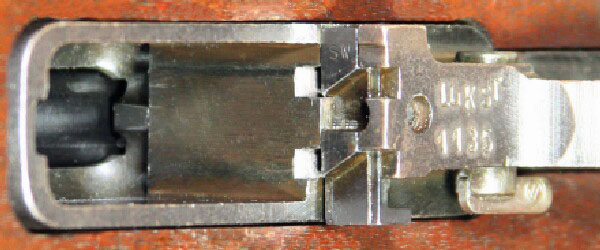

| Magazine Catch |
type IIA |
SW (Unk subcontractor for Winchester) |
