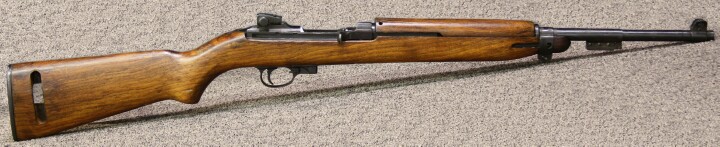

This carbine has been buffed to a high polish, removing some of the GI markings. It has the number 9 stamped in the slingwell, handguard, slide, barrel band lug, barrel band spring, and bolt. The receiver has no Bavaria markings, and no evidence they were removed.
|
|
| Barrel | Underwood 8/4? | |
| Front Sight | type II | U (Underwood) |
| Barrel Band/Swivel | type III | MMQ on band, EMQ on lug (post war GI replacement part) |
| Slide | type III | S (Standard Products) |

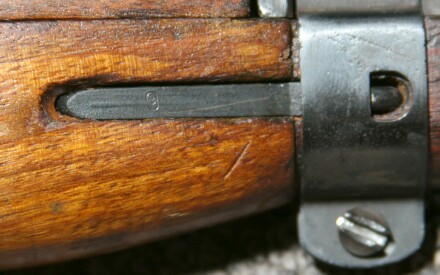

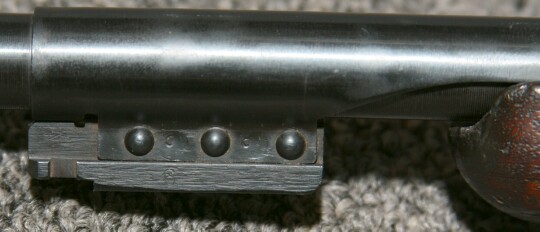

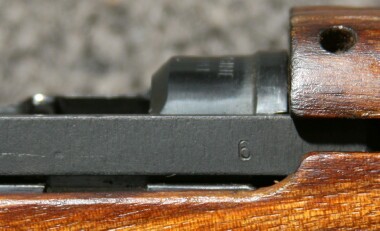

Date on barrel has been buffed down making second digit of year illegible. Barrel band lug, barrel band spring, and slide have the number 9 stamped into them.
|
|
| Stock | type II | Trimble TN (Trimble Nurseyland Furniture Company of Rochester, NY for National Postal Meter) |
| Handguard | type II | OI (S.E. Overton Company of South Haven, MI for Inland) |
| Buttplate | National Postal Meter |

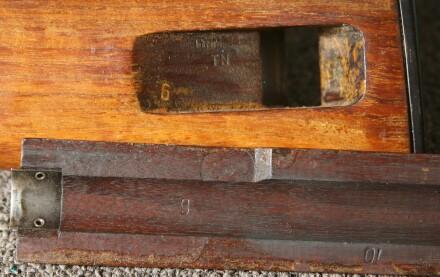

Number 9 stamped inside stock slingwell and under handguard.
|
|

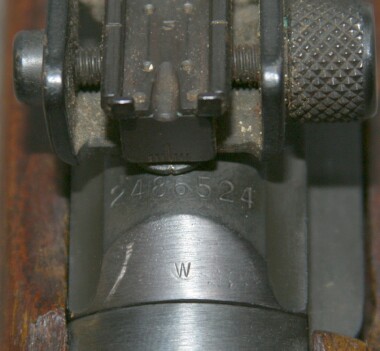

| Receiver | Underwood W (Universal Winding Company of Cranston, RI for Underwood) | |
| Rear Sight | type III | I.R. Co. 7160060 (International Register Company & GI drawing number) |
| Operating Spring Tunnel Housing | attached | |
| Recoil Plate | type III | AU (Underwood) |
Receiver has been buffed to a high gloss finish.
|
|
| Bolt | flat | S'G' (Saginaw Gear of Grand Rapids) |
| Ejector | type II | |
| Extractor | type II | U (Underwood) |
| Extractor Plunger | type II | |
| Firing Pin | type I | S'G' (Saginaw Gear of Grand Rapids) |

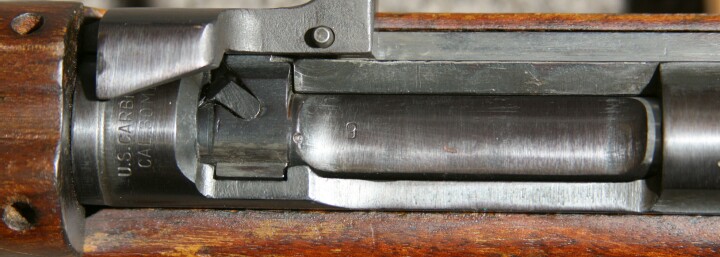

Bolt has been buffed to a high gloss finish. The number 9 is stamped on top.
|
|

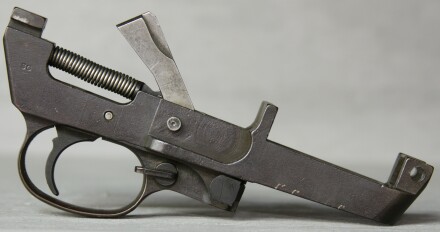

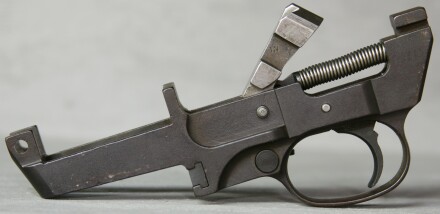

| Trigger Housing | type V | SG (Saginaw Gear of Saginaw, MI) |
| Trigger | ||
| Sear | type I | |
| Hammer | type III | IN (unknown subcontractor for National Postal Meter) |
| Trigger Housing Pin | type II | |
| Safety | type IV | HI (unk GI contractor for Inland) |
| Magazine Catch | type IIA | MN (Mattatuck Mfg Company of Waterbury, CT for National Postal Meter) |
|
|
